Force Plates
Bertec force plates are designed for gait, balance, and performance analyses. Our patented strain gauge technology, innovative transducer designs, and quality manufacturing help you capture the highly accurate data needed for your research.
Wide range of applications
Variety of sizes and load ranges
Superior electronics
Negligible cross talk, drift and signal interference
Ease of data collection
Strongest industry warranty

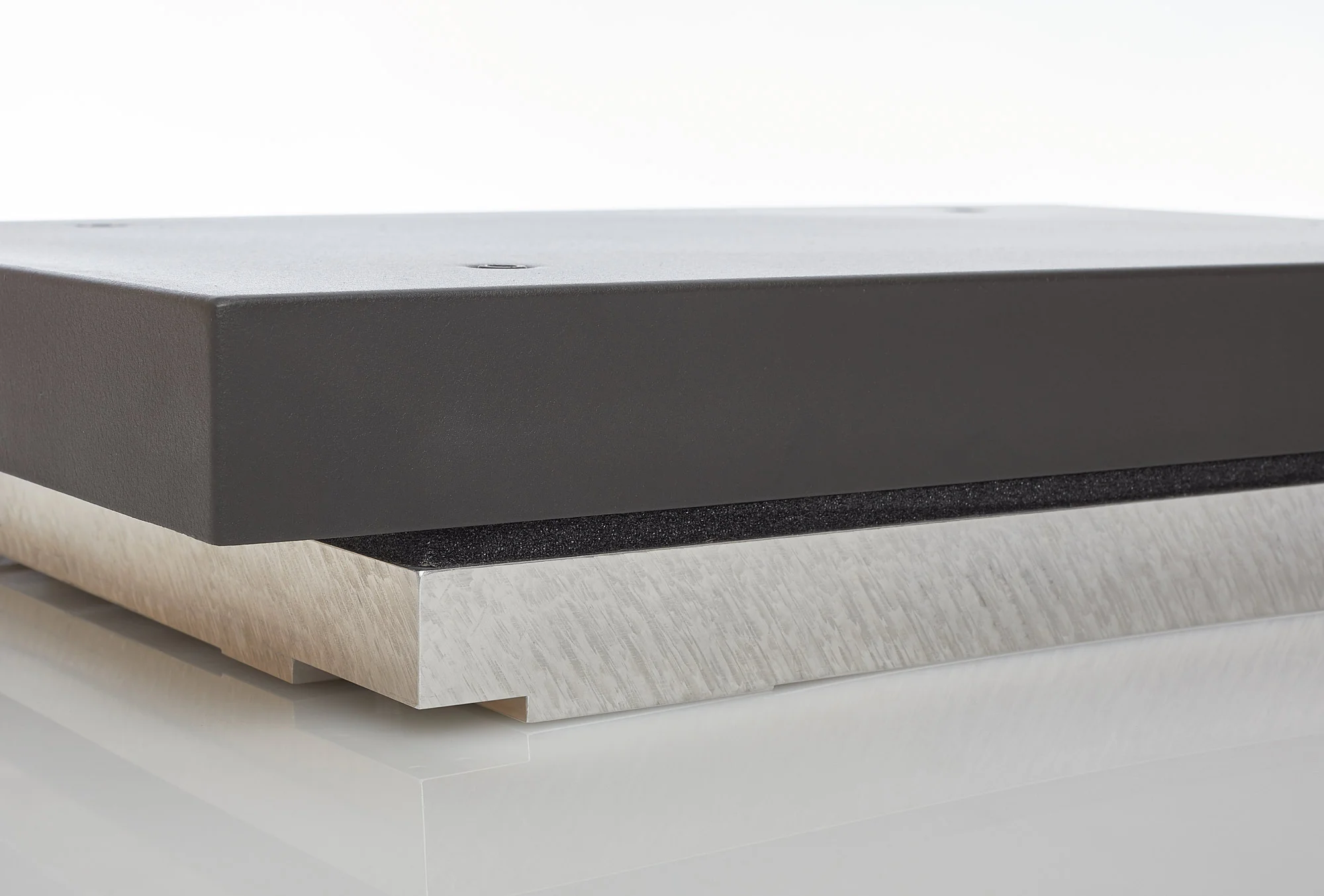

Superior technology
Bertec force plates lead the industry in center of pressure and force measurement accuracy with negligible crosstalk, drift, and signal interference. Analog signals sampled internally at 1000Hz are immediately processed by our custom electronics into digital data impervious to degradation.

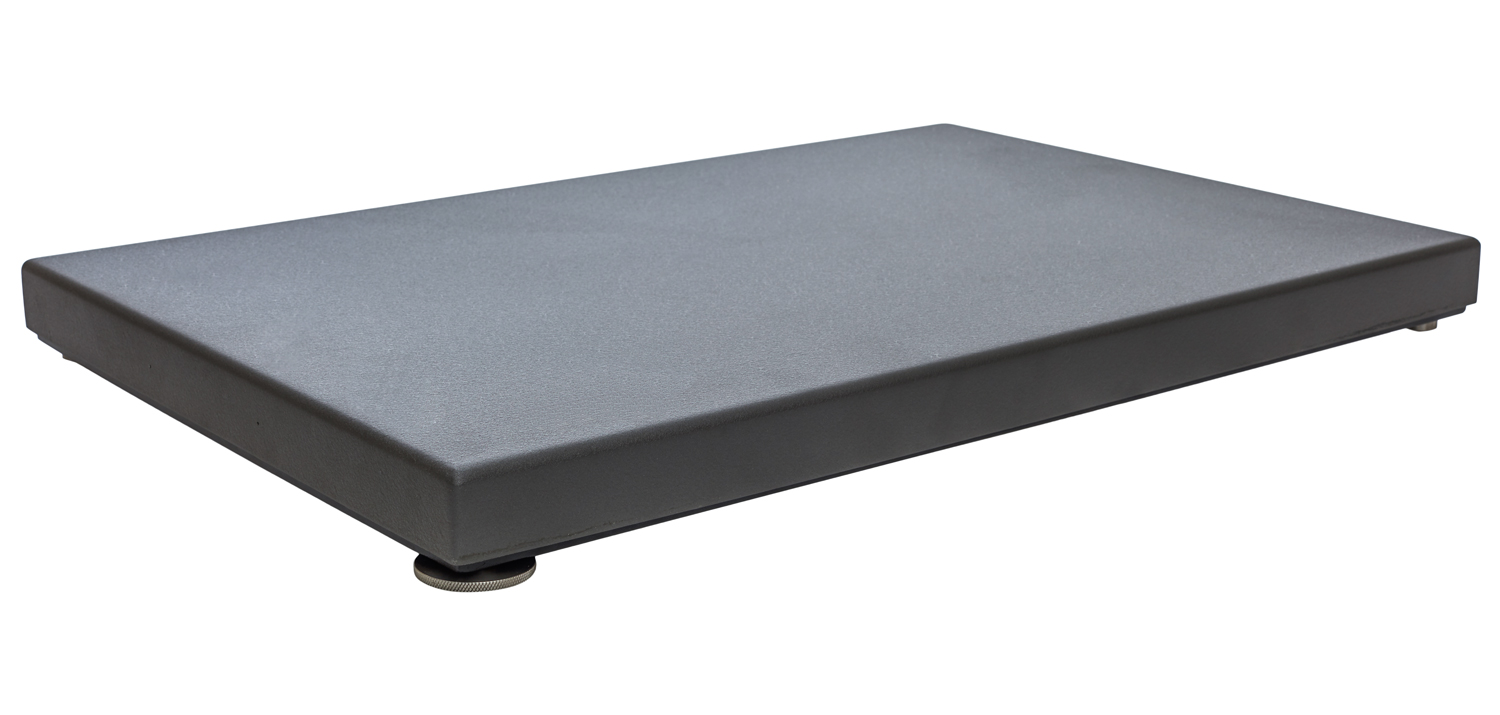

Portable solutions
Take your lab to them. Bertec's line of portable force plates allow for accurate and reliable data collection in more natural environments.
Strongest industry warranty
Representing a legacy of excellence in biomechanics for over 30 years, Bertec is proud to offer the strongest 7-year warranty on fixed force plates.

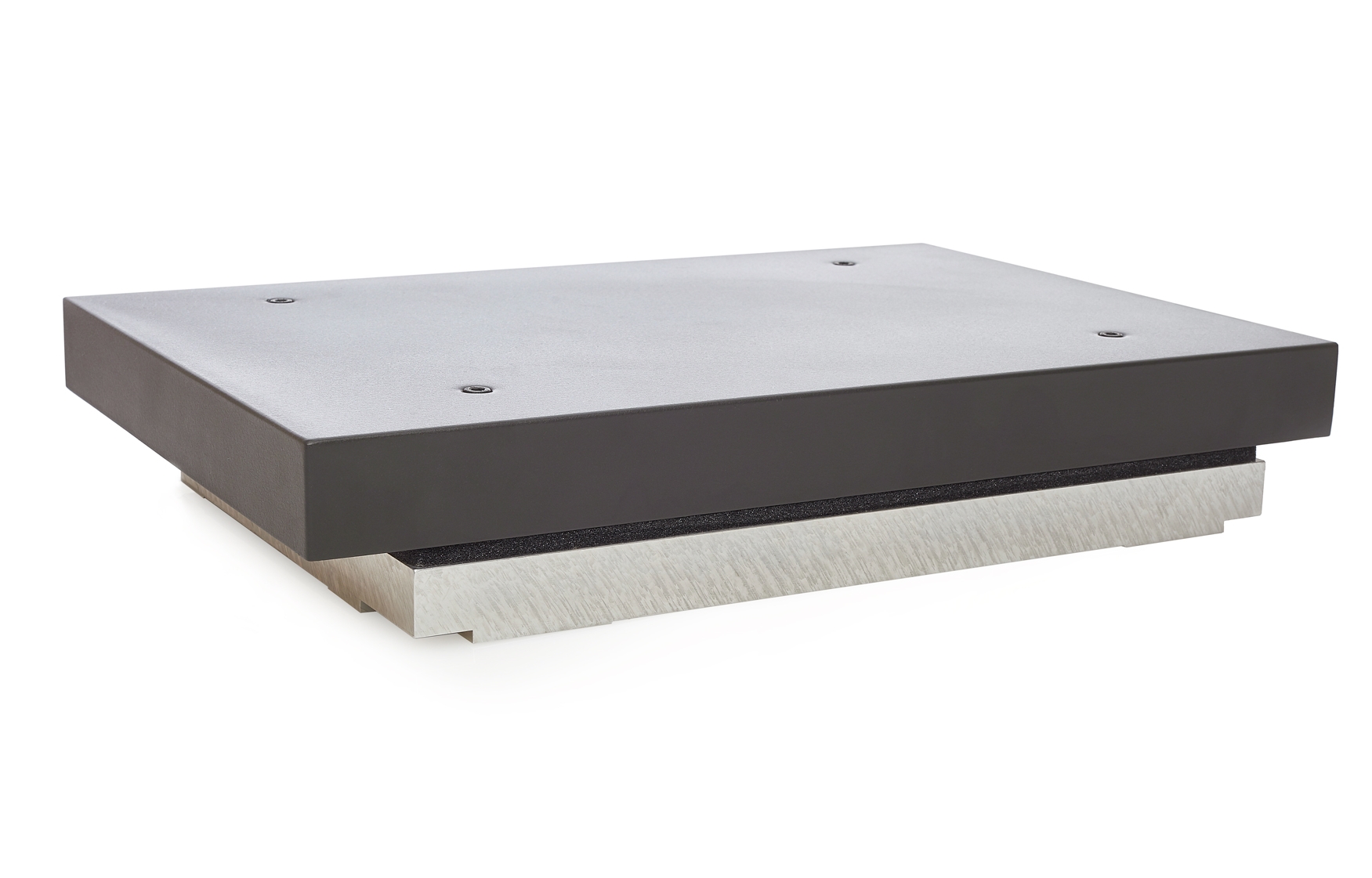

Fixed Walkway Solution
The Bertec Fixed Walkway allows researchers to mount Bertec’s 40x60 cm or 60x90 cm fixed force plates in a customizable in-series configuration for various biomechanics applications. Independently reconfigure your force plates depending on your experimental needs while maintaining data quality.
Explore applications on our YouTube channel.
Configuration
| model | width mm (in) | length mm (in) | height mm (in) | weight kg (lb) | load capacity 1000 lb (5000 N) | load capacity 2000 lb (10000 N) | load capacity 4000 lb (20000 N) | spec sheet |
| Portable (USB or standard output directly from force plate) | ||||||||
| 4060-05 | 400 (15.75) | 600 (23.62) | 50 (1.97) | 8–10 (18–22) | ✔ | ✔ | download | |
| 5060-06 | 500 (19.68) | 600 (23.62) | 60 (2.36) | 13 (28) | ✔ | download | ||
| 6090-06 | 600 (23.62) | 900 (35.42) | 60 (2.36) | 23 (50) | ✔ | download | ||
| Fixed | ||||||||
| 4060-07 | 400 (15.75) | 600 (23.62) | 75 (2.95) | 38 (84) | ✔ | ✔ | ✔ | download |
| 4060-08 | 400 (15.75) | 600 (23.62) | 83 (3.25) | 38 (84) | ✔ | ✔ | ✔ | download |
| 4060-10 | 400 (15.75) | 600 (23.62) | 100 (3.94) | 30 (66) | ✔ | ✔ | ✔ | download |
| 4060-15 | 400 (15.75) | 600 (23.62) | 150 (5.91) | 21 (46) | ✔ | ✔ | ✔ | download |
| 4550-08 | 464 (18.25) | 508 (20) | 83 (3.25) | 38 (84) | ✔ | ✔ | ✔ | download |
| 6012-15 | 600 (23.62) | 1200 (47.24) | 150 (5.91) | 62 (137) | ✔ | ✔ | ✔ | download |
| 6090-15 | 600 (23.62) | 900 (35.43) | 150 (5.91) | 45 (99) | ✔ | ✔ | ✔ | download |
| 9090-15 | 900 (35.43) | 900 (35.43) | 150 (5.91) | 65 (143) | ✔ | ✔ | ✔ | download |
Specifications
Available in a variety of sizes and load ranges
Utilize with any motion capture system including camera-based systems using passive or active markers
Simultaneously measures three force components and three moment components about the x, y, and z axes for a total of six outputs which are used to compute the Center of Pressure (CoP)
Also available - specialized force plates, balance plates, and jump plates, measuring only the vertical force and two moments which are used to compute the Center of Pressure (CoP)
Force plate signal is fed into your choice of amplifier - digital, analog or dual digital/analog output
Digital signal output from the portable force plate can be directly plugged into a standard USB port
Digital acquisition software enables the user to collect data quickly
SDK is available for download to integrate the force plate with custom software
Custom electronics guarantee negligible cross talk, drift and signal interference from external sources
Mounted and portable force plates available
Portable force plates allow data collection in more natural environments
Strongest industry warranty
